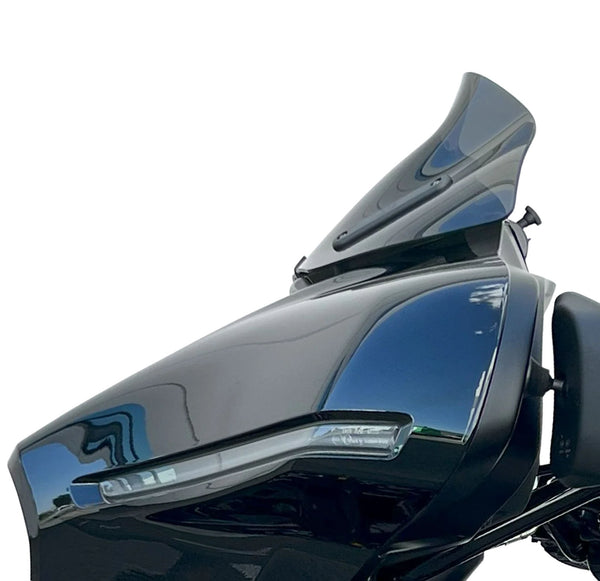

24+ Ultra - Gold Series Acrylic
We redesigned the Ultra to match the new styling while maintaining exceptional wind protection and a comfortable ride. Our Ultra Gold Series acrylic windshields eliminate buffeting and provide a quieter ride.
Stand-offs, cover plates, and hardware are included with the windshield.
LRS Recurve Windshields are made from the highest optical grade acrylic and polycarbonate materials, allowing for a crystal clear look not only on the bike but for rider's view as well.
Specs:
- Width: 22"
- Thickness: (.135")
- Material - Impact Modified Acrylic
- Recurve: Yes

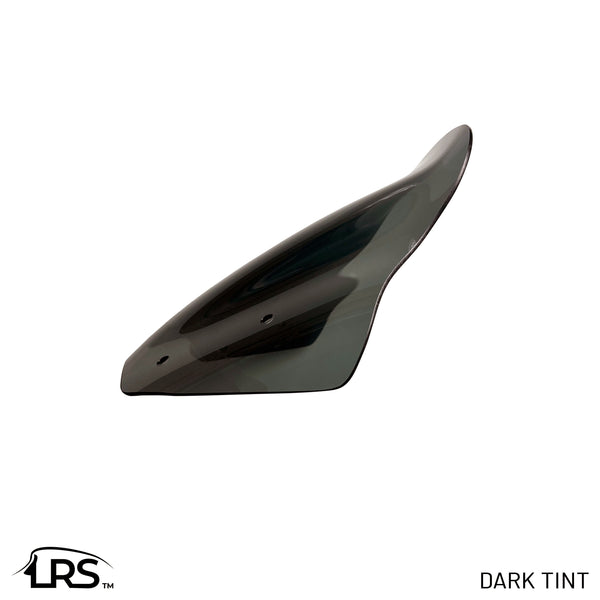

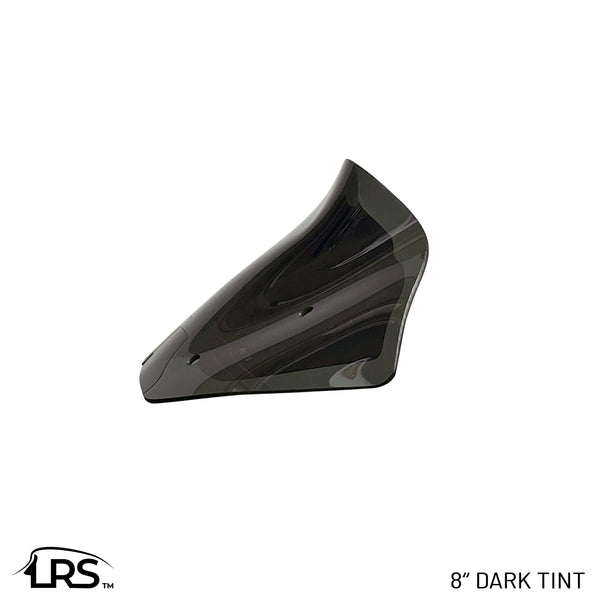

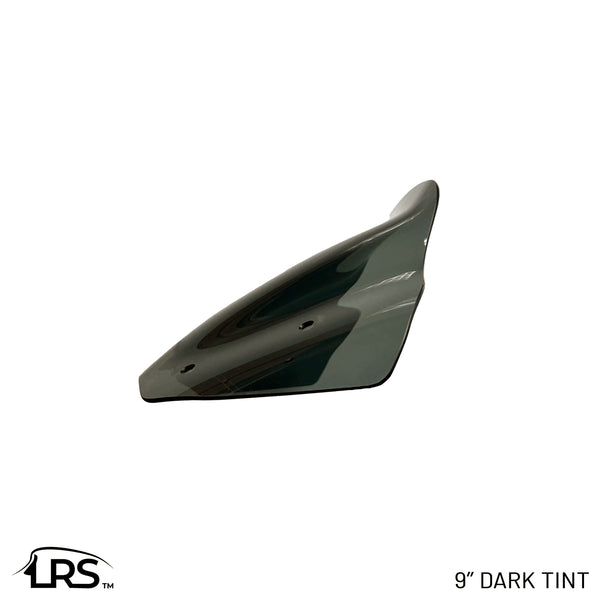

- Tints: Light, Medium, Dark
- Sizes: 10", 13"
Fitment:
- FITMENT: 2023-2024 Harley-Davidson CVO Street Glide (FLHXSE), 2024 Harley-Davidson Street Glide (FLHX)
Remember: LRS Recurve Windshields are made to be looked over, not though.
Install:
- Remove the factory shield using T25 Torx bit
- Remove the factory risers from the fairing using T25 Torx bit. (You must remove the bolts then pull off the cover of the fairing and unscrew the risers from the back)
- Replace the factory risers with LRS risers secured with factory hardware. The risers will only fit in one direction. There are little notches in the fairing that fit with the risers to help guide it into place.
- Place the LRS shield on the fairing
- Place the cover plate and secure one side at a time. Hand start the threads then torque to hand tight using a 3mm Allen Key/Wrench.
Download the install guide here
*All Windshields are designed and made by Long Ride Shields out of Sparks Nevada, USA.*
*All measurements are approximate. These may differ depending on material shrinkage when formed.*

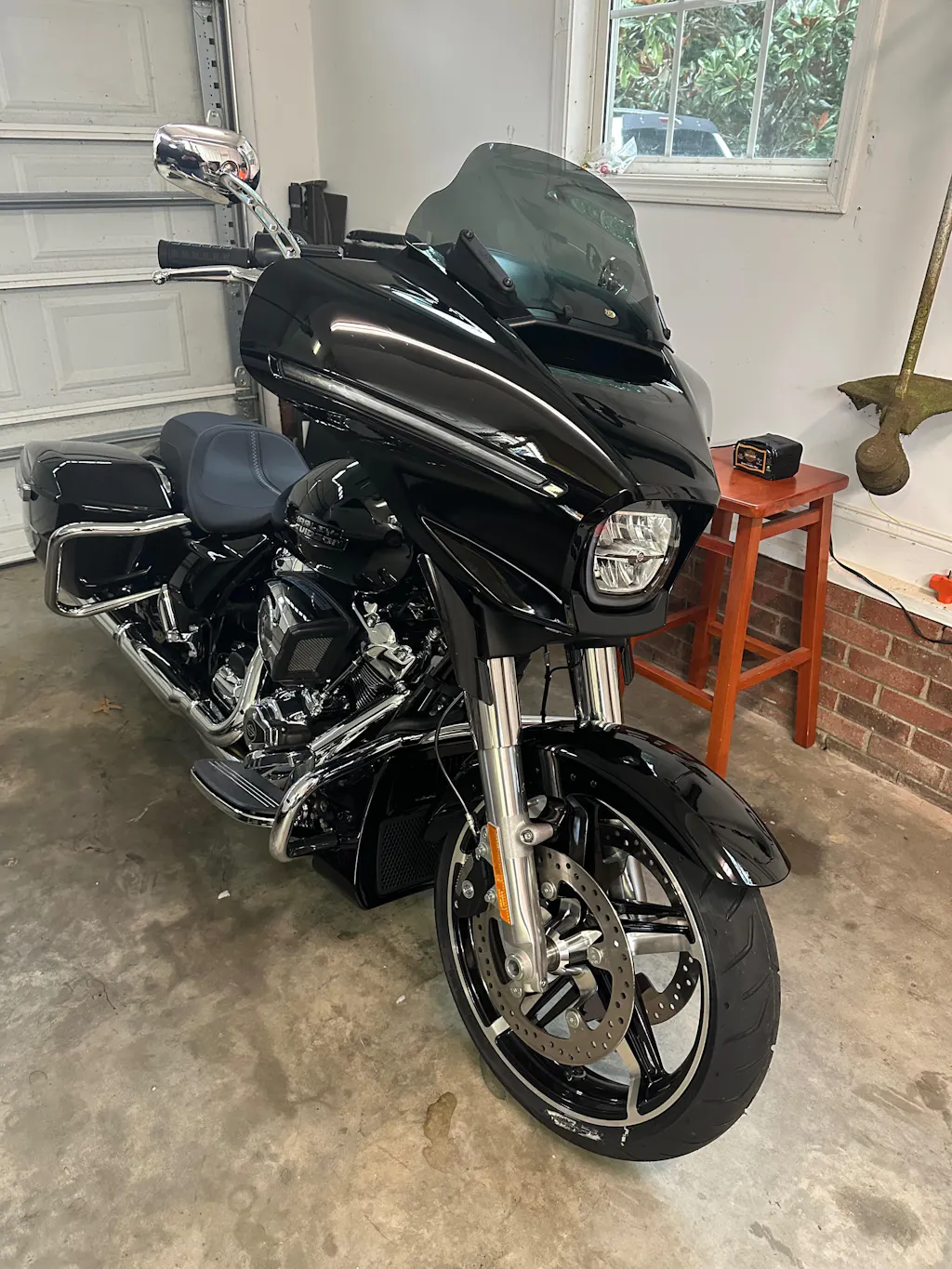

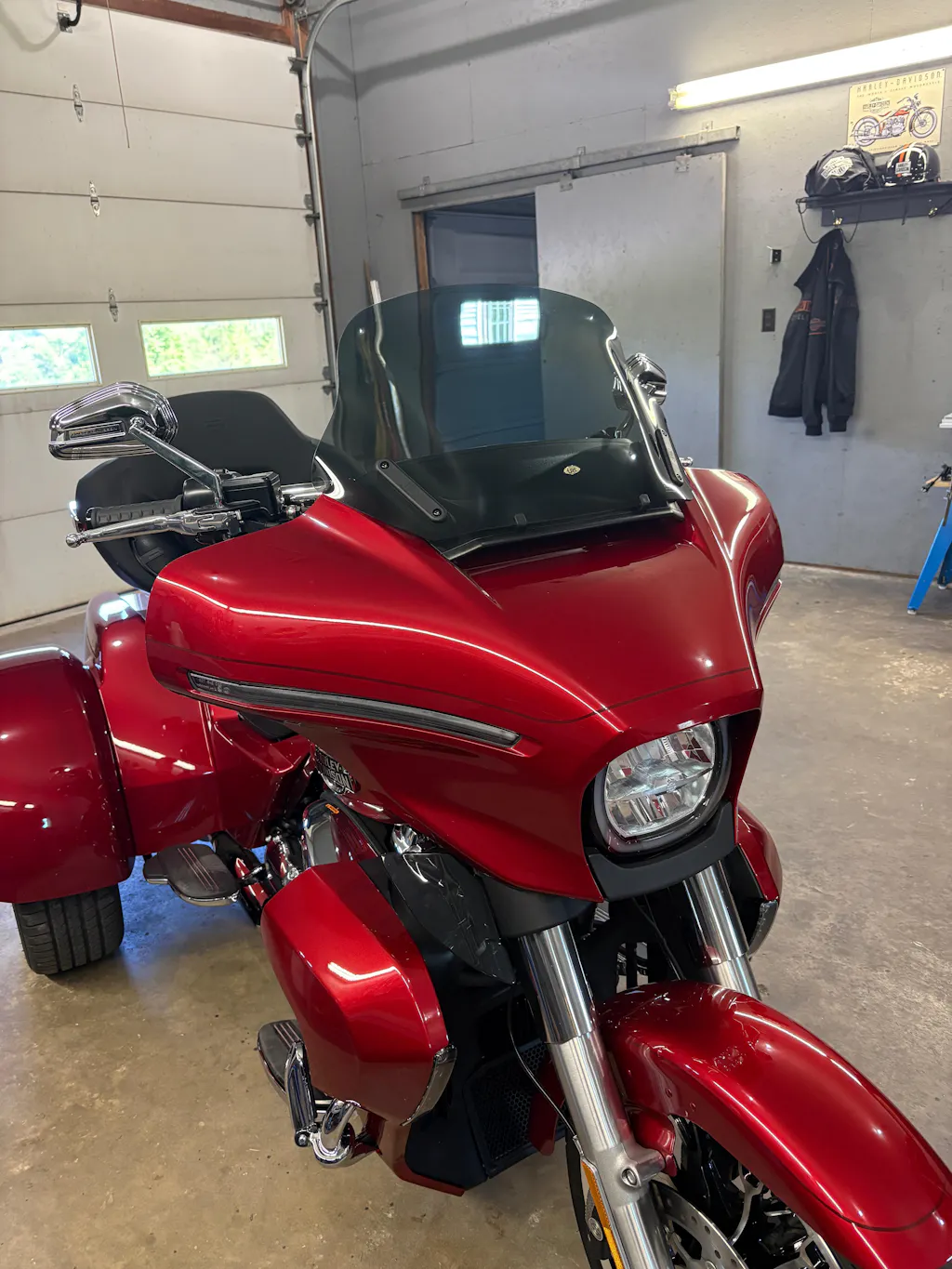

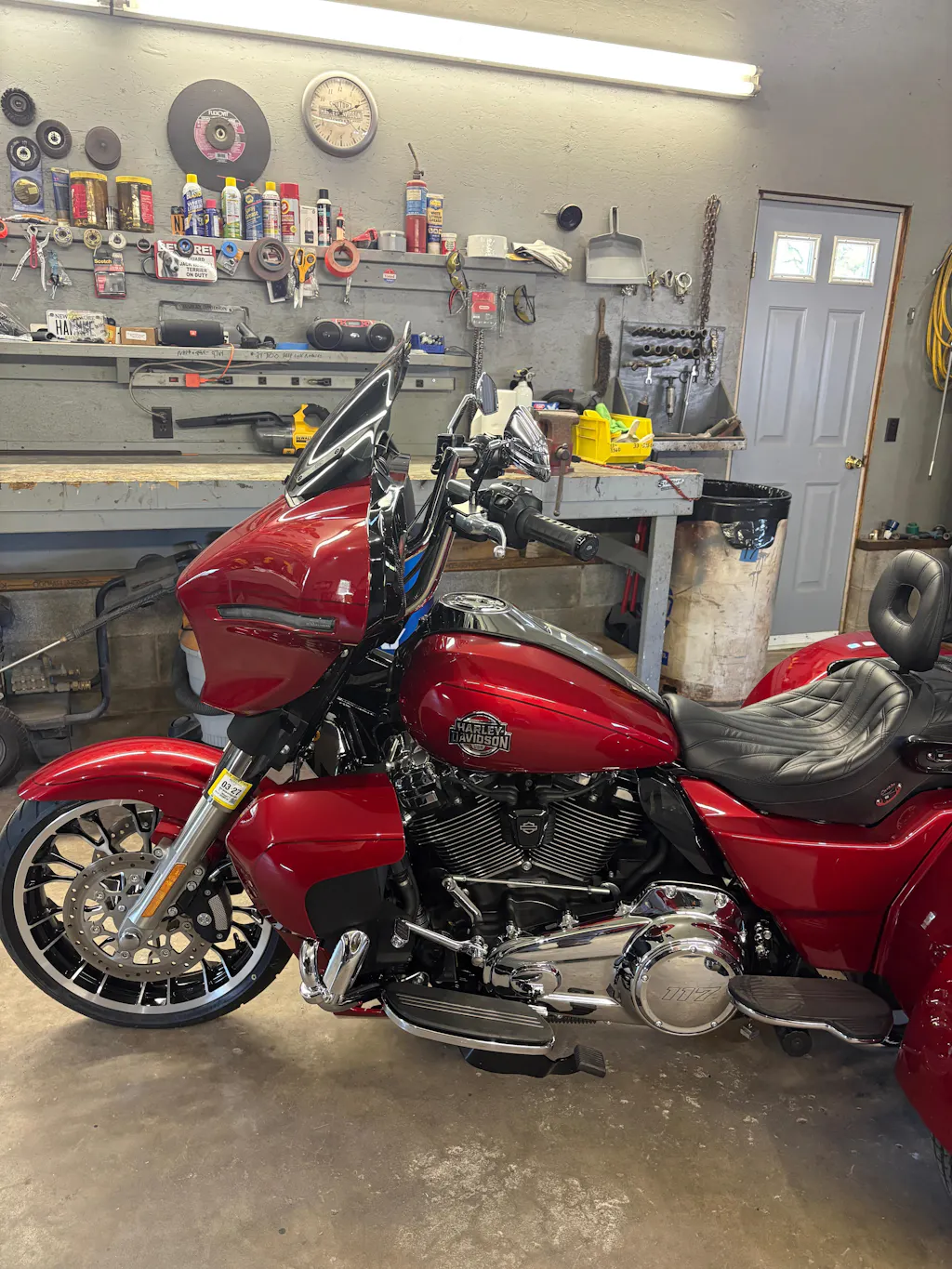

I’m 6’ and the 10” was not high enough so got the 13”. Works great been buying LRD shields for years. This is a street glide ultra
I have been happy with all LRS products I have bought over the years
2024 Street Glide.

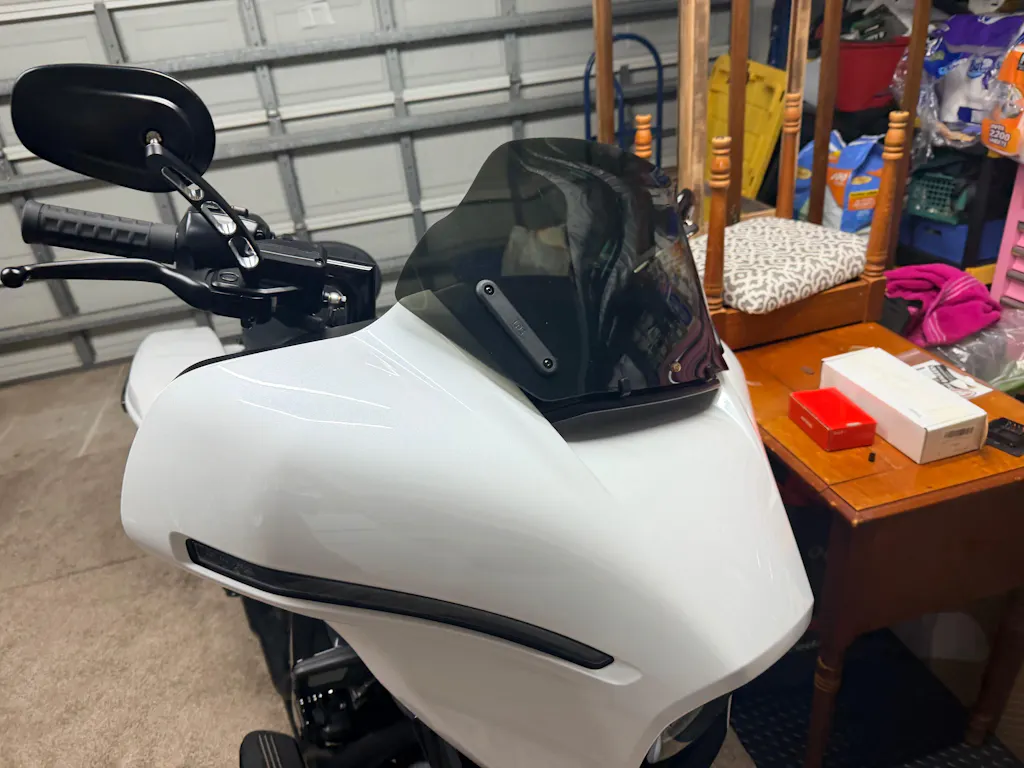

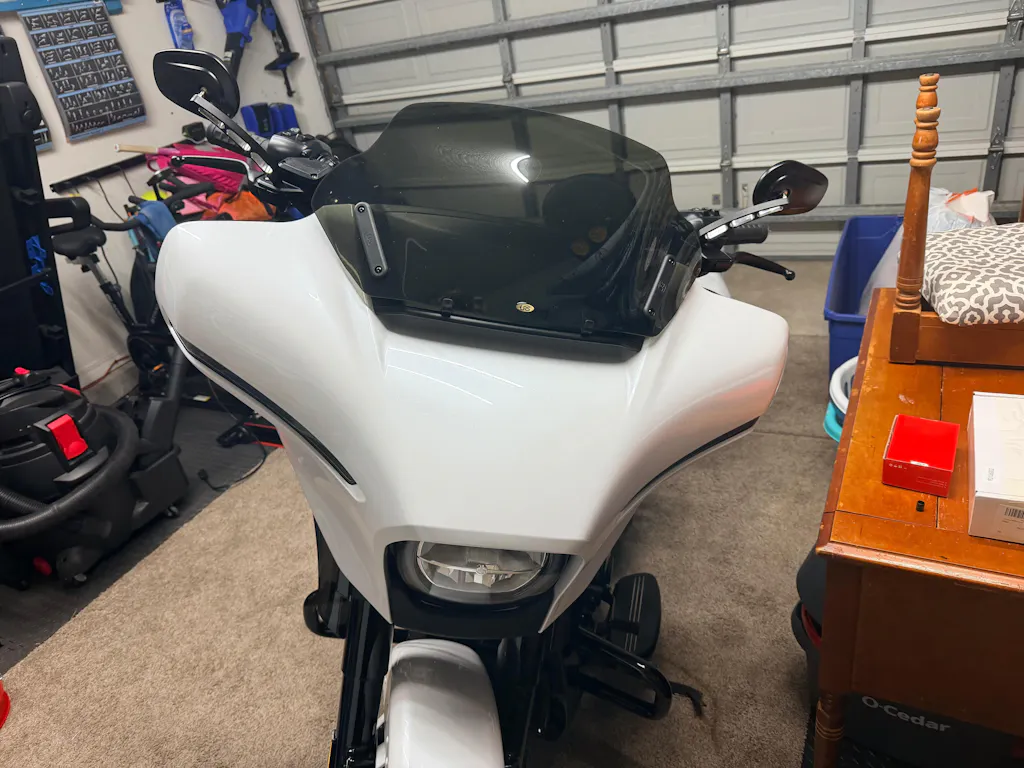

I originally got the 10” but was still getting pelted in the visor and top of helmet with bugs. I changed out to the 13” and everything is great now. I’m 6’.
This is my 4th bike I have installed a product from LRS. As always I am very happy with the customer service, but more especially the quality of the products they produce. Directions for installation were straightforward. Keep up the good work.
Have not received product
