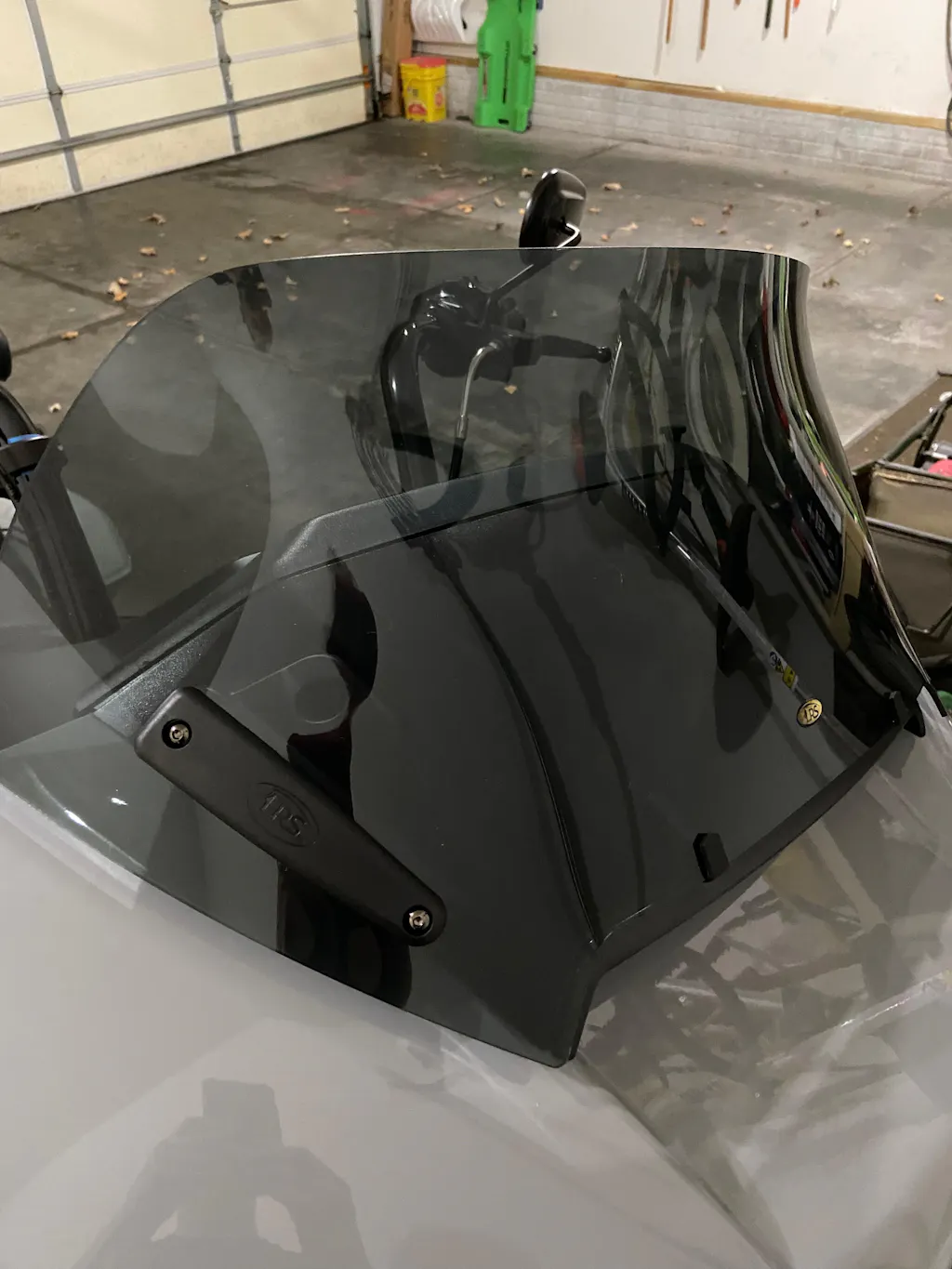

B-Stock Manta Ray - Gold Series Acrylic
Blemish inventory is the result of defects in the manufacturing process. Defects may include material contamination that includes up to 2 black spots, bubbles, or scratches no larger than 1 centimeter in diameter.
All blemish windshields are new and unused however contain minor defects that don't pass our QC process.
ALL SALES ARE FINAL AND NOT ELIGIBLE FOR RETURN OR EXCHANGES!
Designed to compliment the modern styling of the 2023.5+ Road Glide (new style fairing). We have developed the Manta Ray for maximum wind protection offering style, a quiet ride, and less buffeting. The Manta Ray includes mounting brackets and a premium bolt kit.
LRS Recurve Windshields are made from the highest optical grade acrylic and polycarbonate materials, allowing for a crystal clear look not only on the bike but for rider's view as well.
Remember: LRS Recurve Windshields are made to be looked over, not through.
Specs:
- Width: 24"
- Thickness: (.135")
- Material: Impact Modified Acrylic
- Recurve: Yes
- Tints: Light, Medium, Dark
- Sizes: 9", 11"
Fitment:
- 2023-2024 Harley-Davidson CVO Road Glide (FLTRXSE)
- 2024 Harley-Davidson Road Glide (FLTRX)
- 2024 Harley-Davidson CVO Road Glide ST (FLTRXSTSE)
Install:
- Remove the factory windshield using T25 Torx driver
- Place Risers on top of mounting points (it may be easier to place the shield down first then lift the shield and slide the Riser into place to keep the Riser from moving)
- Place windshield onto fairing and line up mounting points
- Place the Cover Plate and start threading bolts by hand. Start each bolt on each side.
- Tighten down to hand tight using a 3mm Allen Key.
Download the install guide here
